Specifications
-System output (RMS) 1000 W
-Number of array satellites 4
-Number of Smartlink adapters 1
-Max. SPL (continuous) 125 dB
-Max. SPL (Peak) 131 dB
-Frequency response 40 - 20000 Hz
-Dispersion (H x V)110° horizontal, vertical 34 °
-RMS  Subwoofer: 700 W , Array Satellites: 300 W
-Peak power  Subwoofer: 1400 W , Array Satellites: 600 W
-Weight 48,2 kg
-Protection circuits DSP-based multiband limiter, overload, short circuit, thermal overload

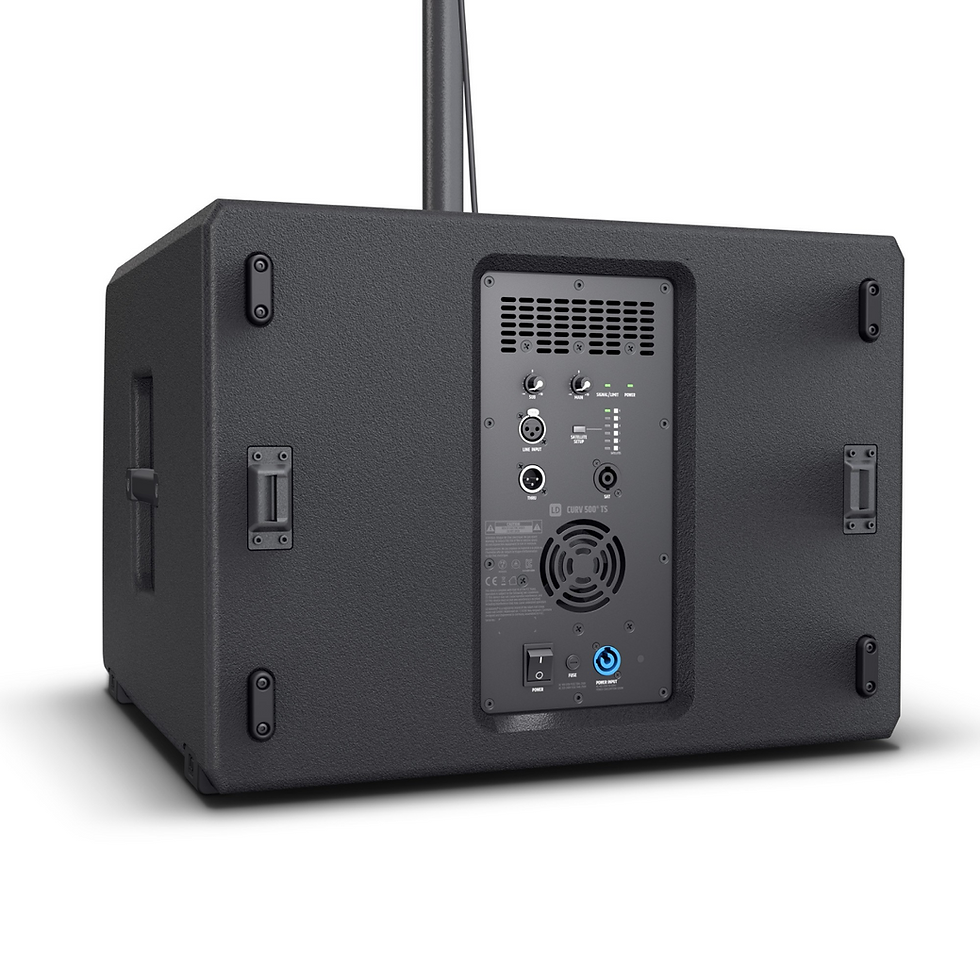

Subwoofer
-Low/mid driver dimensions 15 "
-Low/mid driver dimensions (mm) 381 mm
-Cabinet construction Bass Reflex
-Housing material plywood
-Cabinet surface Polyurea
-Subwoofer weight 35.5 kg

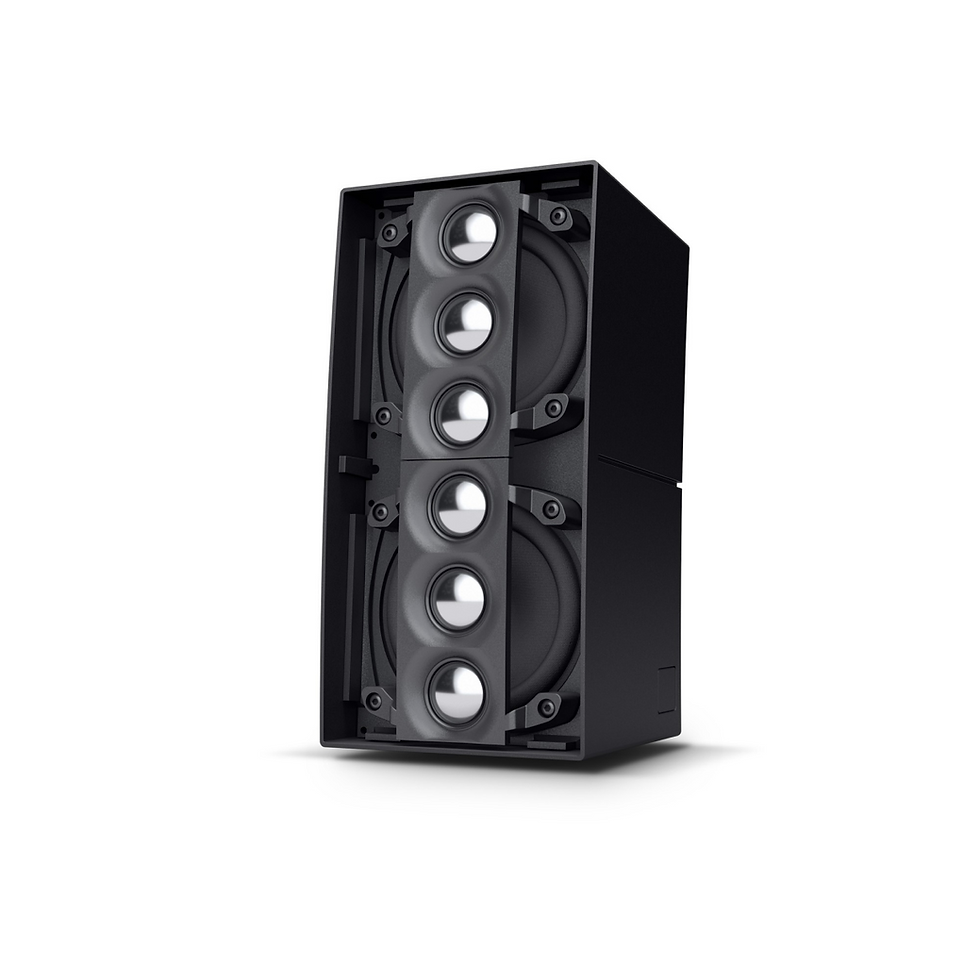

CURV 500 TS Duplex Satellite Black
-Midrange dimensions 2 x 4 "
-Tweeter dimensions 6 x 1 "
-Load rating (RMS) 80 W
-Peak power 160 W
-Dispersion110° horizontal, vertical 7 °
-Impedance 8 Ohm(s)
-SPL (1W/1m) 91 dB
-Max. SPL 110 dB
-Material Die-cast aluminium
CURV 500 TS Two Array satellites for the CURV 500® Portable Array System, black
-Midrange dimensions1 x  4 "
-Tweeter dimensions3 x  1 "
-Load rating (RMS) 40 W
-Peak power 80 W
-Speakers per amplifier channel (DSP44/45K)8x1, 4x2, 2x3, 2x4, 5, 6 (LOW Z)
-Dispersion110° horizontal, vertical (each satellite) 10 °
-Impedance 16 Ohm(s)
-SPL (1W/1m) 88 dB
-Max. SPL 104 dB
-Material Die-cast aluminium
-Surface Powder coated
 CURV 500 TS SmartLink Adapter for up to six LD CURV 500® Satellites, Black
-Material Die-cast aluminium
-Surface Powder coated
-Connectors 1x Speakon compatible
-Width 122 mm
-Height 57 mm
-Depth57 mm
-Weight0,35 kg
